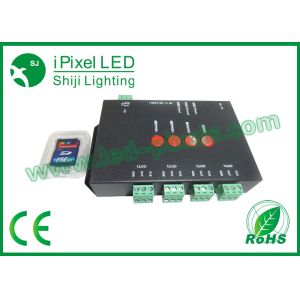

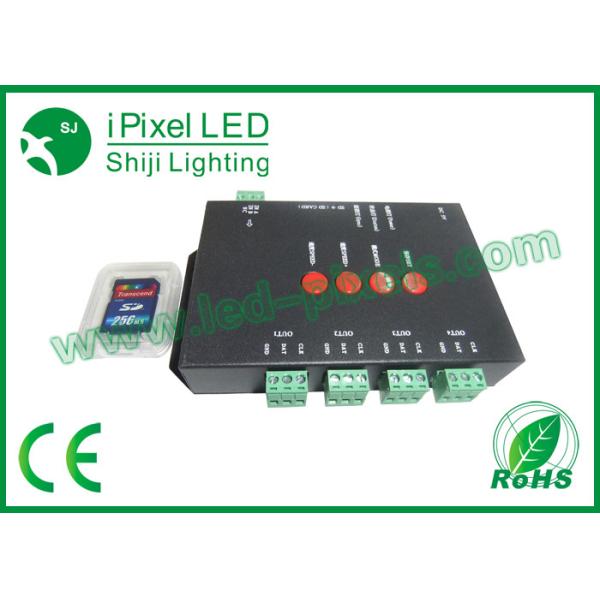

AC110-220V LED Pixel Controller 3W 4000pixels RGB SD Controller
T-4000 System characteristics:
1>,32—256 Gray level,Support software Gamma correction.
2>,Support the rules and special-shaped handle.
3>,Four-port output,every port can support 512-1024 pixels.
4>,Off-line(SD Card) control, play back content stored in the SD
card.
5>,The controller Can save up to 16 files ,copy the file into SD
card in order.
6>,The file in SD card must be named: 00_1.led, 01_1.led,
02_1.led…….
7>,Compatible with single and dual IC, if you control a single
line IC LED lights,
without being connected to the CLK line.
NOTE:
1>. When T-4000 controller control less than 512 lamps the frame rate
can reach 30fps.
When T-1000 controls more than 512 lamps and less than 1024 lamps
the frame rate will slow down automatically.
2>. In the 2012 production version of the T-4000 to add a Chinese flag
on the surface, you must use the new software.
Suppported Chips:
| Chip type | Software code& Controller type | Lamps/(MAX) | Note |
| LPD6803,D705,1101,6909, 6912 | T-4000-6803 | 4096 | |
| LPD8806,LPD8809 | T-4000-8806 | 4096 | |
| TM1803,TM1804,TM1809,TM1812 | T-4000-TM | 4096 | TM1804 and TM1809 are divided into high speed and low speed |
| TM1903,TM1904,TM1909,TM1912 | T-4000-TM19 | 4096 | |
| UCS6909,UCS6912,UCS7009,UCS5903 | T-4000-UCS-32 | 4096 | |
| UCS1903,UCS1909,UCS1912 | T-4000-UCS-256 | 4096 | divided into high speed and low speed |
| UCS3903 | T-4000-UCS-1024 | 4096 | |
| DMX512 | T-4000-DMX | 680/2048 | Compatible with standard DMX512 |
| WS2801,WS2803 | T-4000-WS | 4096 | |
| WS2811 | T-4000-WS2811 | 4096 | divided into high speed and low speed |
| DS189 | T-4000-DS189 | 4096 | |
| TLS3001,TLS3002,TLS3008 | T-4000-TLS | —— | |
| P9813 | T-4000-P9813 | 4096 | |
| SM16715 | T-4000-SM16715 | 4096 | divided into high speed and low speed |
| SM16716 | T-4000-SM16716 | 4096 | |
| BS0901,BS0902 | T-4000-0901 | 4096 | |
| BS0815 | T-4000-0815 | 4096 | |
Buttons definition:
| Buttons | Definition |
| SET | Save settings(if press SET,the current settings file and playback speed are saved, according
to this to play after the next boot) |
| MODE | Switch files |
| SPEED+ | Speed up | Press SPEED+ and SPEED- at the same time, enter files loop model |
| SPEED- | Speed down |
Signal output definition:
| COM | Ground |
| DAT | Signal |
| CLK | Clock |
Special parameters:
Memory card:
Type:SD card(if control more lights, suggest using high-speed SD card)
Capacity:32MB—2GB
Format:FAT format
Store files:*.led
Physical parameters:
Temperature:-20°C—85°C
Power supply:DC 5V input
Power:4W
NOTE:
1.To copy files to SD card, you must first format to the SD card,
pay attention to is is that each copy must be formatted before.
2.SD card must be formatted as FAT format.
3.The SD card in the controller can not be hot-swappable, plug the
SD card every time, you must first disconnect the power supply
controller.
