Amusement RGBW Led Strip 5050 SMD Low Voltage Led Strip Lights
Datesheet
| Item NO | SJ-1006144-6812 |
| Voltage | DC5V |
| Power Consumption | 43watt |
| LED Qty | 144LEDs/m |
| IC chip | SK6812 |
| Emitting Color | Full Color Changeable |
| PCB Option | Black / White Color |
| PCB width | 12MM |
| Weatherproof grade | IP65 (Silicon Tube) / IP20 |
| Working Temperature | -40-80°c |
| Warranty | 2 years |
| Certificates | CE , ROHs |
Description

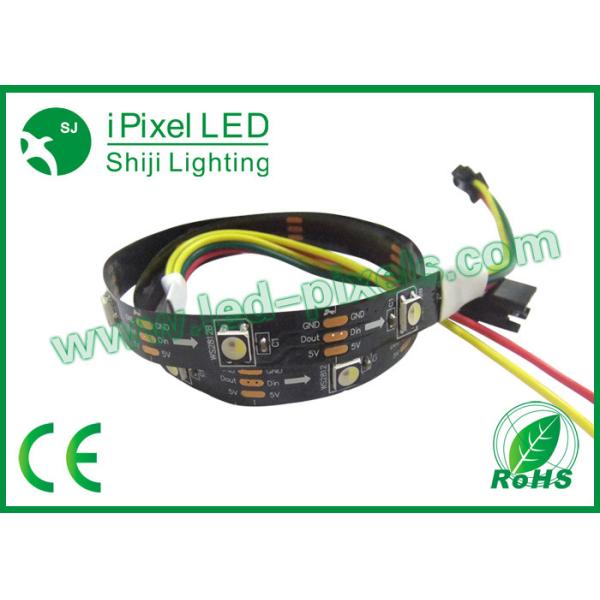

1. It is a high density flexible addressable-digital led strips,
the controller chip sk6812 rgbw is inside the LED, which is kind of
cool, the chip only uses a single pin for input and output signal ,
that means only Date pin for signal transfer , no clock pin using .
2. These LED strips are even more fun and glowy. There are 60pcs
5050 RGB LEDs per meter, and you can control each LED individually!
this is the digitally-addressable type of LED strip. You can set
the color of each LED's red, green and blue component with 8-bit
PWM precision (so 24-bit color per pixel).
3. The strip is made of flexible PCB material, You can cut this
stuff pretty easily with wire cutters, there are cut-lines every
1.7cm (1 LED each). Of course, you can also connect strips together
to make them longer.
4. There are 5 meters for a reel with a 4in1 connector on each end
and separated power/ground wires. Of course , customized length is
workable .
5. You wanted less noticable strip color - yes , it can do it , this
strip has white-colored and black-colored flexible PCB, which will
be less visible against white-painted or black-painted walls.
6. This is a fantastic product used for studio, architectural and
decorative purposes — an easy solution for any project that
requires a full color chasing LED control system!
Technical specs
1. 12.5mm wide, 4mm thick with silicon tube casing on waterproof,
16.7mm long per segment
2. 60 LEDs per meter
3. Maximum 5V @ 60mA draw per 16.7mm strip segment (all LEDs on
full brightness)
4. 5VDC power requirement (do not exceed 6VDC) - no polarity
protection
5. 1 integrated RGB LEDs per segment, individually controllable
6. LED wavelengths: 630nm/530nm/475nm
7. Connector: 4-pin JST SM
8. We currently produce this product with the sk6812 4-pin chip LED
installed. The 'B chip type adds additional polarity protection and
is the same brightness as the 'S type.
ShenZhen ShiJi Lighting Co., Ltd
Established high-tech frim specialized in the research ,
development , engineering , and marketing of LED based lighting
solutions .We have professional engineers always staying at the
forefront of LED technology . We're especially well-placed in the
field of sign lighting solutions and interior lighting .We're
Located in ShenZhen south of China , near ShenZhen Airport and HK
with convenient transportation . Our product range ia as follows:
1.5050 & 3528 LED module Backlight for Channel Letters & signage
2.RGB LED pixel light & LED string light
3.LED flexible strip & LED rigid bar for Decorative Lighting
4.High Power light
5.LED flood light
6.LED ceiling light
