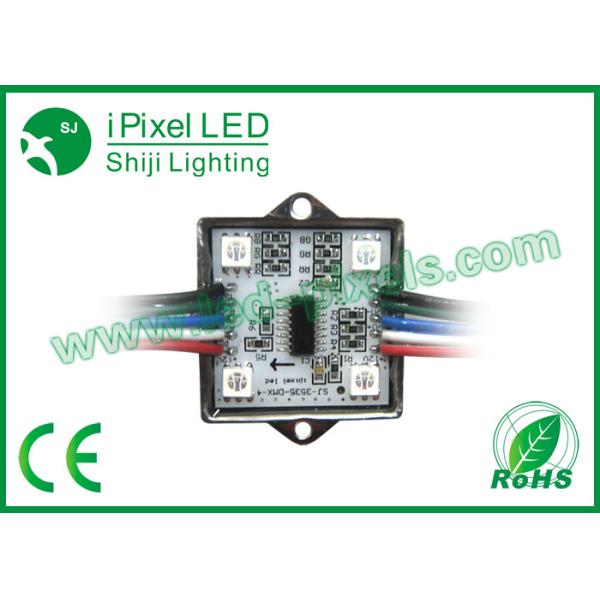

4 leds RGB Outdoor DMX LED Light Square Case For KTV 35mm x 35mm
About Products:
1. Each dot is digitally controlled, per PCS led module with 1IC
and 4LEDs.
2. All of the LEDs are controlled at once so you cannot have one
pixel with the three LEDs different colors.
3. The pixels use 4 x 5050 RGB LEDs, with a 120 degree beam width.
4. RGB Pixels are digitally-controllable lights, you can make any
color, and animate.
5. The pixels are connected by a 4-conductor cable. +12VDC, ground,
data and clock.
6. You can easily cut the strand or attach more onto the end.
7. The total max brightness of all LEDs is about 8000mcd.
8. The LEDs are constant-current driven so you'll have even colors
through-out the strand as long as you have a stable 12V supply.
9. Each strand has 20 pixels in series usually! Each strand has two
JST SM 3-pin connectors so you can connect multiple strands in a
row, as many as you wish, just watch for how much current they want.
10. Brand: iPixel LED.
Specification:
Product Name | 4LEDs/pcs dmx 512 square led module |
Model Number | sj-3535-dmx |
LED Chip | Epistar SMD5050 RGB LED chip |
IC Chip | dmx512 |
LED Qty | 4LEDs/pcs |
Voltage | DC12V |
led quantity | 4pcs |
Power(/pcs) | 0.96W/pcs |
IP Rate | IP65 |
Shell Siz | 35mm(L) x 35mm(W) |
Shell Material | Mental case |
Cable length | 8cm usually, also can be customized |
Signal Wires | DAT, CLK, 12V+, GND- |
Drive Pattern | Constant Voltage drive |
Certification | CE, RoHS |
Warranty | 2 Years |
Advantages:
1, WS2811 belongs to worldsemi
2 We are Shenzhen Worldsemi
3, Products have RoHS Certification
4, from factory with 3-5days delivery
5, Technical support are avaliable
6, OEM/ODM are welcome
7, Control by DMX 512 /Mini controller/HC201S
4 leds ws2801 rgb pixel led backlight module
l individually Control
l Programable & SD controller
l DMX 512 Controllalbe
l Madrix compatible
l IP66, Water-proof protection
l Easy installation (two options: screw fixed, or 3M double side
adhesive tape)
| 20pcs per string, 8cm spacing apart ,metal case
Trade Terms:
1.Payment: T/T 100% in advance
2.Production lead time 20000pcs: 2-3days, 20000~100000pcs:5~7days,
above 100000 pcs :10 days.
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.MOQ: 100 pcs
