48leds 16pixels UCS1903 12V 5050smd Rgb LED Rigid Bar Alumimum For
Building
Features:

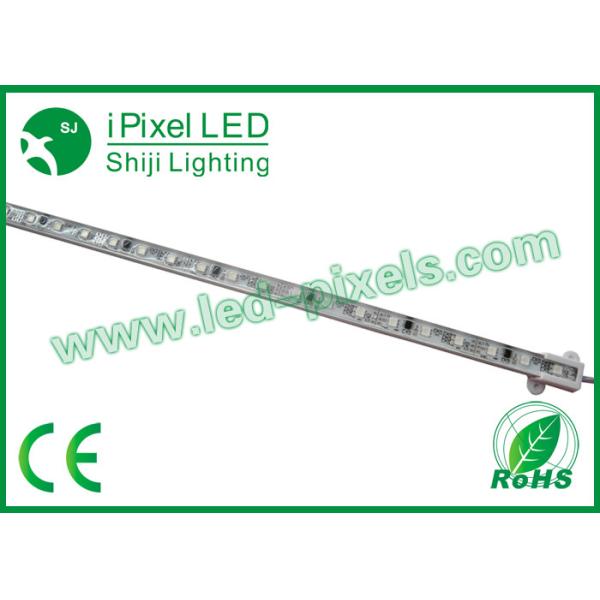

1. This 1000mm digital rigid LED bar made soldered by 2pcs 500mm
length PCB, every 3LED drives by
1 UCS1903 IC.
2. Rigid PCB: white only, PCB width 12mm.
3. Non-waterproof & waterproof IP66 housing by aluminum case, and
covered by epoxy glue.
4. DC12V power requirement only(do not short circuit).
5. 3pin waterproof connector soldered in each end of the bar, you
have to use T style connector for repowering every
5meters-(waterproof bar).
6. Each bar included 2pcs metal clips and 2pcs screw for
installation.
7. Amazing color effects, support online/offline control, Madrix
supported
8. Control IC included, supporting numerous ,color-change
effects,programmable by LEDEdit software
9. Easy installation, high brightness, safe and energy
conservation, long lifespan,Low brightness declines.Widely used in
building profile, Street lighting,stage view,outside Ads screen,
entertainment and so on for decoration and lighting.
10. Pure fiber material Rigid PCB, 12V low voltage input
Datasheet:
| LED Type/brand | digital5050 Grade A(top quality) |
| LED Quantity | 48leds/m |
| Energy Rating | A |
LED Power Consumption | 11.52w/m |
Input Voltage | DC12v |
Colour | Dream color(ICRGB) |
Beam angle | 140° |
Operating Temp | -40°c-40 °c |
| IC Chip | ucs1903 |
| Average life | 50,000 hours |
| color | dream color |
| Dimension | 1000mm(L)*14mm(W)*10mm(H) |
| waterproof rate | IP20/IP66/IP67 |
| Warranty | 2 years |
| Certificates | CE&RoHS |
Pictures:
Applications:
1.archway .,canopy, ad words, ultra-thin light boxes, light words
,luminescent signboard backlights
2.buildings bridges ,signboards and other decorative outline
3.hight -end stores .shopingmalls .home and other indoor lighting
4.cars, corridor, staricase, furniture,show windows.nd other
decorative outline
5.bars .ktv ,cafes stages and other entertainning places atmosphere
rendering
6.salons,handicrafts and other high-end counter lighting
7.amusement park thearter &aircarft cabin mood lighting
8.emergency hallway lighting ,auditorium walkway lighting ,stairway
exit lighting ,concealed lighting
Connecton way:
SPI signal: LED Strip+LED power supply +LED controller
DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder
LED controller: T- series SD card controller, RF remote controller, DMX
controller, Arduino...
(offline / PC online)
LED power suppply: Meanwell power supply, T- series, A- series power supply...
(waterproof / non-waterproof)
