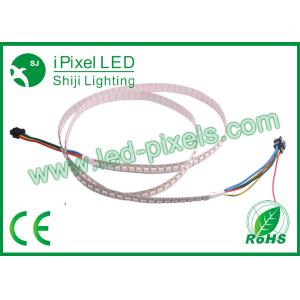

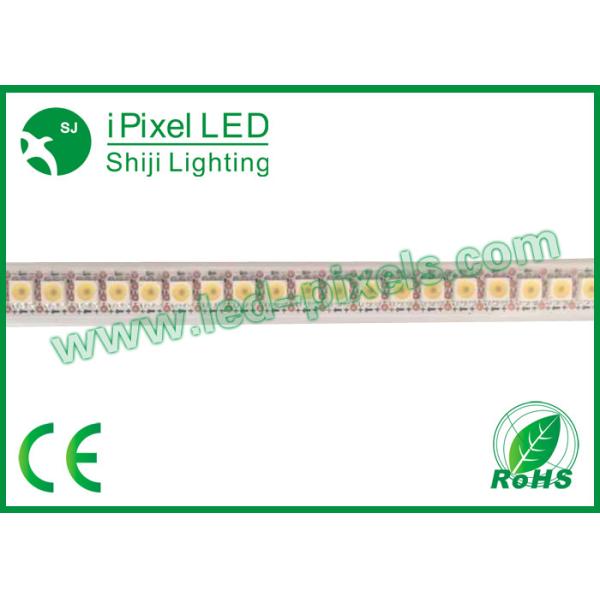

Smart Controlled Addressable APA102 LED Strip 5050 Cool WhIte144LEDs / m

Datesheet

Description

1. There's a new LED strip coming! APA102 single Cool white color but can be individually controlled. These fancy new LED strips are a great upgrade for people who have loved and used ws2812b strips for a few years but want something even better. APA102 LEDs use generic 2-wire SPI, so you can push data much faster than with the WS2812B LED strip .

2. APA102C LEDs are 5050-sized LEDs with an embedded microcontroller inside the LED ,these LEDs have 2 wires (input and output) for sending data - one clock pin and one data pin. That means you need two pins, not one, to control them

3. This is the 144 LED-per-meter , single Cool white color led strip- the highest density version strips, on White flex PCB. We have 30 LED/m, 60 LED/m and 144 LED/m on both white and black flex PCB.

4. They come in 1 meter reels with a 4-pin JST SM connector on each end and separated power/ground wires.

5. You wanted less noticable strip color - this strip has white-colored and black-colored flex PCB, which will be less visible against white-painted or black-painted walls.

6. You can controlled by Arduino Uno/Mega microcontroller , DMX controller , SD controller and etc

7. There are White , Warm White and RGB full color strip workable too .

Technical specs

1. Width (with weatherstripping): 14mm ,

2. Width (w/o weatherstripping): 12.7mm

3. Thickness (with weatherstripping): 4mm

4. 30 LEDs per meter , pixel pitch: 7mm between LEDs

5. Operating temperature: -40°C - 40°C

6. Storage temperature: -10°C - 50°C

7. Maximum 5V @ 60mA draw per 33.3mm strip segment (all LEDs on full brightness)

8. 5VDC power requirement (do not exceed 6VDC) - no polarity protection

9. 1 integrated RGB LEDs per segment, individually controllable

10. Connector: 4-pin JST SM

FAQs

1. How is SHIJI / Ipixel LED ?

SHIJI / Ipixel LED is a manufacturer who focus on full color LED pixel lights and have 5 years experience in pixel led market .

b.Sales department over 12 people , and most customers come from Europe , North America and Mexico .

2. What's the certificates do you have ?

100% items have the CE ,RoHS certificates .

3. Can you provide the ODM or OEM service ?

Yes , we had rich experience in OEM or ODM service based on customer's different requirments
