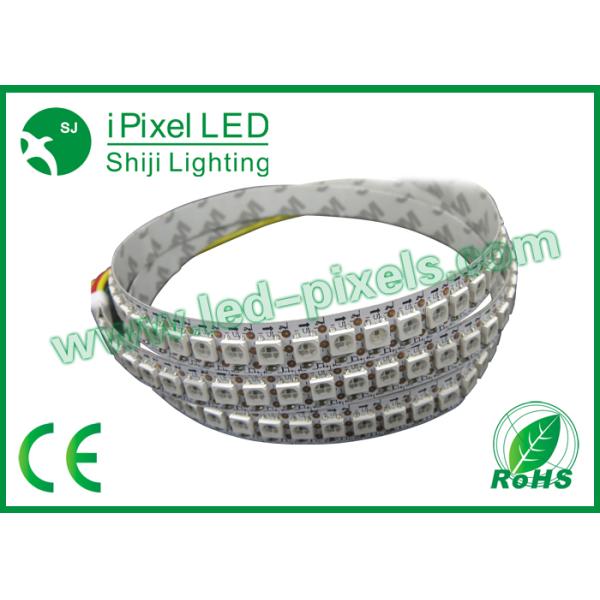

Colorful DC5V Digital Rgb Addressable LED Pixels For Outside LED Pixel Display

Datesheet

Description

1. It is a high density flexible addressable-digital led strips, the controller chip WS2811 is inside the LED, which is kind of cool, the chip only use a single pin for input and output signal , that means only Date pin for signal transfer , no clock pin using .

2. These LED strips are even more fun and glowy. There are 60pcs 5050 RGB LEDs per meter, and you can control each LED individually! this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).

3. The strip is made of flexible PCB material, You can cut this stuff pretty easily with wire cutters, there are cut-lines every 1.7cm (1 LED each).

4. addressable LED strip light, the IC chips interface with the LEDs so you can now have multiple colors on one strip on each node. This is the beauty of pixel control.

5. They come in 5 meter reels with a 3-pin JST SM connector on each end and separated power/ground wires. Of course , customized length is workable .

6. You wanted less noticable strip color - yes , it can do it , this strip has white-colored and black-colored flex PCB, which will be less visible against white-painted or black-painted walls.

7. You can controlled by Arduino Uno/Mega microcontroller , DMX controller , SD controller and etc

Technical specs

1. 12.5mm wide, 4mm thick with silicon tube casing on waterproof, 16.7mm long per segment

2. 60 LEDs per meter

3. Maximum 5V @ 60mA draw per 16.7mm strip segment (all LEDs on full brightness)

4. 5VDC power requirement (do not exceed 6VDC) - no polarity protection

5. 1 integrated RGB LEDs per segment, individually controllable

6. LED wavelengths: 630nm/530nm/475nm

7. Connector: 3-pin JST SM

8. We currently produce this product with the WS2812B 4-pin chip LED installed. Some company versions may have come with the WS2812S 6-pin LED. Both B and S LEDs can be chained together. The 'B chip type adds additional polarity protection and is the same brightness as the 'S type.

Pictures

FAQs

1. How is SHIJI / Ipixel LED ?

SHIJI / Ipixel LED is a manufacturer who focus on full color LED pixel lights and have 5 years experience in pixel led market .

b.Sales department over 12 people , and most customers come from Europe , North America and Mexico .

2. What's the certificates do you have ?

100% items have the CE ,RoHS certificates .

3. Can you provide the ODM or OEM service ?

Yes , we had rich experience in OEM or ODM service based on customer's different requirments

Introduction

Shenzhen Shiji Lighting Co., Ltd. was founded in 2010 and since then we have developed the brand SHIJILIGHTING. Shiji Lighting is an established firm specializing in the research and engineering of various LED products. We have a well rounded sales team consisting of members aging from 26 to 45. Senior staff have conducted business with companies from all over the world and have a thorough understanding of clients' differing needs. Therefore, they are able to provide much guidance and support to our junior staff.

We are equipped with the most advanced automatic machines and well equipped devices for LED display production which can support our monthly production capability of up to 10000 sqm.

Here at Shiji, we always focus on the improvement and innovation of our full color LED display quality,we are very confident that we can provide our clients with innovative and satisfying products.

We design and manufacture several types of LED display, each of them meeting the demands of different markets and usage situations, We always do our best to satisfy all our customer’s requests and wishes. We welcome challenging projects and any possibility to cooperate with our clients and help improve their business.

We have been continuously developing various new products to meet the market demands and we reached great performance in regards of our wireless LED traffic sign solutions. Our products not only match the clients’ project application needs but are also produced according to the electronics criteria required by the European market. We have CE and ROHS certification issued by BST Technology testing agency.
