Coloured Waterproof Flexible LED Strip / Individually Addressable RGB LED Strip

Datesheet

Description

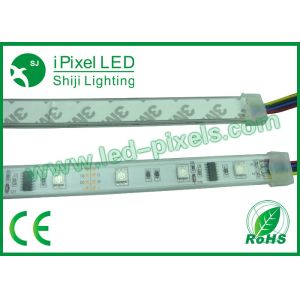

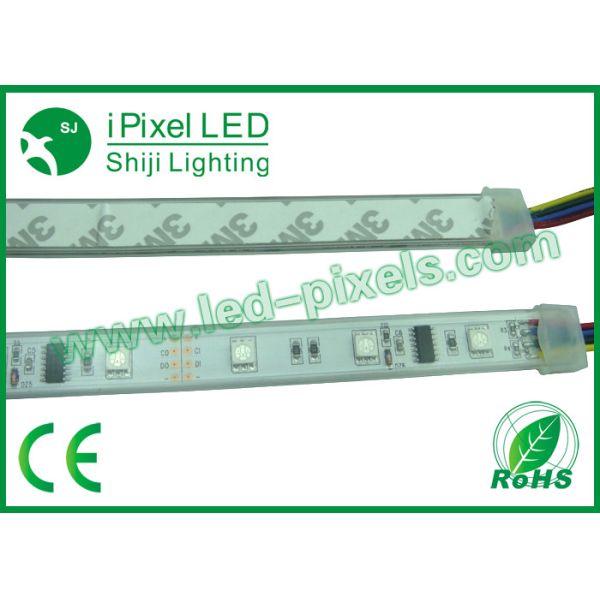

1. Full Color RGB 5050 Smart digital Controlled WS2801 LED strip lights , it is built with 36 LEDs and 12ICs per meter . Each 3pcs LED can be controlled separately, so you can set any color or any animations by this strips , it is the perfect items for Addressable controlled complex lighting projects.

2. This strip is soldered with 4 pin JST SM connector on both end , +5V (Red), Ground (White), Data (Green) and Clock (Blue). LEDs have 2 wires (input and output) for sending data - one clock pin and one data pin. That means you need two pins, not one, to control them .

3. They come in 5 meter reels with a 4-pin JST SM connector on each end and separated power/ground wires . Of course , customized strip length is available .

4. You can controlled by Arduino Uno/Mega microcontroller , DMX controller (decoder to translate) , SD controller (LEDEdit Software ) and etc

Technical specs

1. Width (with weatherstripping): 14mm ,

2. Width (w/o weatherstripping): 12.7mm

3. Thickness (with weatherstripping): 4mm

4. 36 LEDs per meter , pixel pitch: 83.4mm between each 3 LEDs

5. Operating temperature: -40°C - 40°C

6. Storage temperature: -10°C - 50°C

7. 12VDC power requirement (do not exceed 13VDC) - no polarity protection

8. 3pcs RGB LEDs per segment .

9. Connector: 4-pin JST SM , +5V , GND , DAT , CLK Pin. 2-pin SPI-like protocol

10. SPI controller type WS2801 , 256 gray levels per color , 16 millions of colors

Applications

1. Widely used for home decoration, hotels, clubs, shopping malls.

2. Architectural decorative lighting, boutique atmosphere lighting

3. Extensively applied in Backlighting, concealed lighting, channel letter lighting

4. Emergency & security lighting, advertisement sign lighting

5. Decorative lights for holiday, event, show exhibition

6. Applicable for automobile and bicycle decoration, border or contour lighting.

FAQs

1. How is SHIJI / Ipixel LED ?

SHIJI / Ipixel LED is a manufacturer who focus on full color LED pixel lights and have 5 years experience in pixel led market .

b.Sales department over 12 people , and most customers come from Europe , North America and Mexico .

2. What's the certificates do you have ?

100% items have the CE ,RoHS certificates , we currently dont have the UL certificates .

3. Can you provide the ODM or OEM service ?

Yes , we had rich experience in OEM or ODM service based on customer's different requirments

Introduction

Shenzhen Shiji Lighting Co., Ltd. was founded in 2010 and since then we have developed the brand SHIJILIGHTING. Shiji Lighting is an established firm specializing in the research and engineering of various LED products. We have a well rounded sales team consisting of members aging from 26 to 45. Senior staff have conducted business with companies from all over the world and have a thorough understanding of clients' differing needs. Therefore, they are able to provide much guidance and support to our junior staff.

We are equipped with the most advanced automatic machines and well equipped devices for LED display production which can support our monthly production capability of up to 10000 sqm.

Here at Shiji, we always focus on the improvement and innovation of our full color LED display quality,we are very confident that we can provide our clients with innovative and satisfying products.

We design and manufacture several types of LED display, each of them meeting the demands of different markets and usage situations, We always do our best to satisfy all our customer’s requests and wishes. We welcome challenging projects and any possibility to cooperate with our clients and help improve their business.

We have been continuously developing various new products to meet the market demands and we reached great performance in regards of our wireless LED traffic sign solutions. Our products not only match the clients’ project application needs but are also produced according to the electronics criteria required by the European market. We have CE and ROHS certification issued by BST Technology testing agency.
