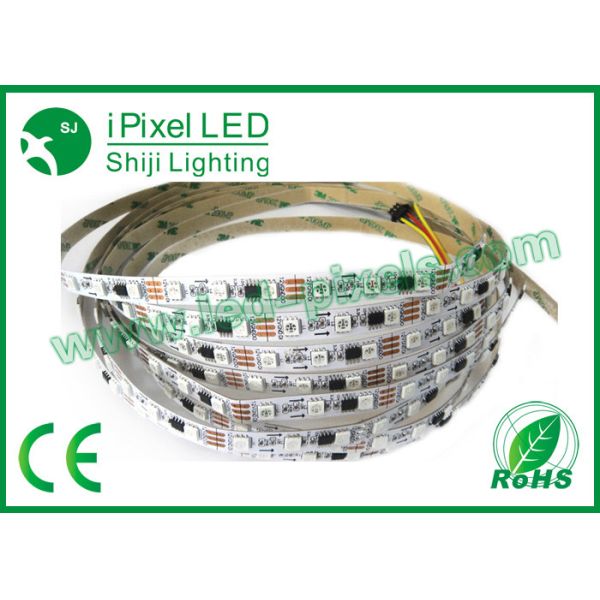

Colored Multicolor Digital RGB LED Strip Weatherproof FOR Outdoor 14.4 Watt / M

Datesheet

Description

1.There are digital type programmable color changing RGB 5050 LED strip lights , it is built with WS2811 IC chip on PCB board directly, the chip only uses a single pin for input and a single pin for output , that means only Date pin for signal transfer , no clock pin .

2. These LED strips are even more fun and glowy. There are 60 RGB LEDs per meter, and you can control each 3 LED individually! this is the digitally type of LED strip. You can set the color of each 3 LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).

3. The strip is made of flexible PCB material, You can cut this stuff pretty easily with wire cutters, there are cut-lines every 5cm (3 LED each). Of course, you can also connect strips together to make them longer (Please dont over 5meter length/ 150leds , as there exsit big voltage drop once longer than 5meters )

4. They come in 5 meter reels with a 3-pin JST SM connector on each end and separated power/ground wires.

5. You can controlled by Arduino Uno/Mega microcontroller , DMX controller , SD controller and etc

Technical specs

1. 12.5mm wide, 4mm thick with silicon tube casing on waterproof, 50mm long per segment

2. 60 LEDs per meter , 20 ICs per meter

3. Maximum 12V, 50mm strip segment

4. 12VDC power requirement (do not exceed 13VDC) - no polarity protection

5. 3pcs RGB LEDs per segment, individually controllable

6. LED wavelengths: 630nm/530nm/475nm

7. Connector: 3-pin JST SM

Application

1.Widely used for home decoration use, hotels, clubs, shopping malls

2. Architectural decorative lighting, boutique atmosphere lighting

3. Extensively applied in Backlighting, concealed lighting, channel letter lighting

4. Emergency & security lighting, advertisement sign lighting

5. Decorative lights for holiday, event, show exhibition

6. Applicable for automobile and bicycle decoration, border or contour lighting

6. LED display for showing kinds of animation .
