Diffused Thin SMD Digital RGB LED Module 2 Years Warranty 5V 50 PCS
About Products
1. Each dot is digitally controlled, per PCS led module with 1IC
and 4LEDs.
2. All of the LEDs are controlled at once so you cannot have one
pixel with the three LEDs different colors.
3. The pixels use 4 x 5050 RGB LEDs, with a 120 degree beam width.
4. RGB Pixels are digitally-controllable lights, you can make any
color, and animate.
5. The pixels are connected by a 4-conductor cable. +12VDC, ground,
data and clock.
6. You can easily cut the strand or attach more onto the end.
7. The total max brightness of all LEDs is about 8000mcd.
8. The LEDs are constant-current driven so you'll have even colors
through-out the strand as long as you have a stable 12V supply.
9. Each strand has 20 pixels in series usually! Each strand has two
JST SM 3-pin connectors so you can connect multiple strands in a
row, as many as you wish, just watch for how much current they want.
10. Brand: iPixel LED.
Specification
Power | 0.72w |
Number of LEDs | 3 chips |
LED Type | 5050smd |
Voltage | DC12V |
FPC color | White |
Water-resistant | IP67, suitable for outdoor environment |
Color | RGB full color changing |
Work Temperature | -20 -- +55degree |
Beam Angle | 120° |
Life time | >50,000hrs |
Warranty | 2 years |
Certification | CE&RohS |
Feature | 1.It can be used as one pixel |
2. program control with a SD card |
3. Firm connection |
4. Made by plastic injection machine |
Application | 1. Channel Letters Backlighting, indoor /outdoor |
2. Advertisement Signs Backlighting |
3. Advertisement Light Boxes Backlighting |
4. Logo backlighting |
5. Advertisement billboards backlighting |
6. Indoor / outdoor illumination |
Advantages:
1,WS2811 belongs to worldsemi
2 We are Shenzhen Worldsemi
3,Products have RoHS Certification
4, from factory with 3-5days delivery
5, Technical support are avaliable
6, OEM/ODM are welcome
7,Control by sd controller , arduino , DMX 512 /Mini
controller/HC201S
Product Feature

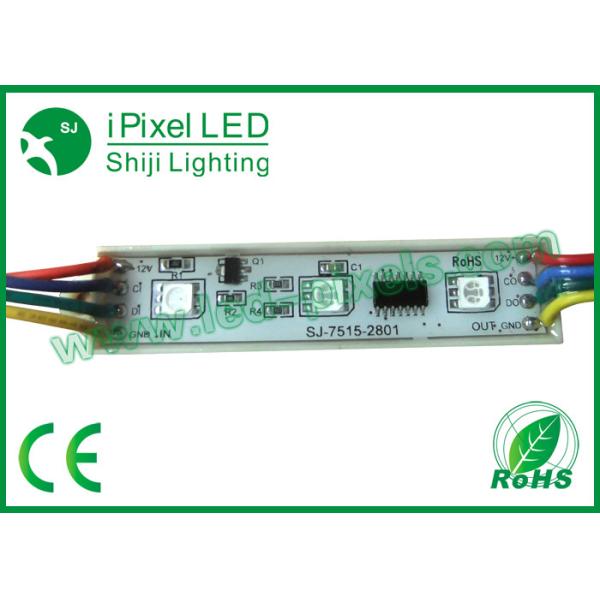

3 leds ws2801 rgb pixel led backlight module
l individually Control
l Programable & SD controller
l DMX 512 Controllalbe
l Madrix compatible
l IP66, Water-proof protection
l Easy installation (two options: screw fixed, or 3M double side
adhesive tape)
| 20pcs per string, 8cm spacing apart ,metal case
| 7515 size 3pcs 5050 leds ws2801 rgb pixel led backlight module
Trade Terms:
1.Payment: T/T 100% in advance
2.Production lead time 20000pcs: 2-3days, 20000~100000pcs:5~7days,
above 100000 pcs :10 days.
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.MOQ: 100 pcs
